  2. Cloud Bigtable Architecture Google Professional Data Engineer GCP
  • Data is stored as a sorted map structure.
  • Data is indexed at the column level as a group of
    • row key
    • a column key
    • and a timestamp
  • The index is the key mapping to the column’s actual value.
  • Timestamp is for versioning.
  • Data operations are conducted on a per-row basis so, all columns of a row are updated simultaneously.
  • Automatic data compression is also done as applicable.
  • Bigtable cluster may only operate within a single zone.
  • For higher availability, configure with two separate clusters, each in a different zone of the same region.

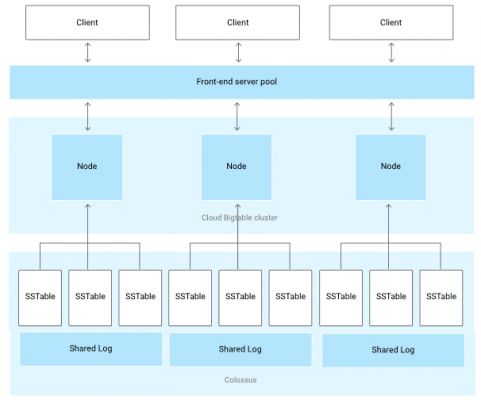

Cloud Bigtable Architecture:

  • Client requests go through a front-end server
  • Nodes are organized into a Cloud Bigtable cluster of a Cloud Bigtable instance
  • Each node in the cluster handles a subset of the requests to the cluster.
  • Add nodes to increase the number of simultaneous requests to handle and maximum throughput
  • Table is sharded into blocks of contiguous rows, called tablets similar to HBase regions. Tablets are stored on Colossus, Google’s file system, in SSTable format.
  • An SSTable is a ordered immutable map from keys to values, and both are byte strings.
  • Tablet is associated with a specific node.
  • Writes are stored in Colossus’s shared log as acknowledged
  • Data is never stored in nodes themselves;
  • Node have pointers to a set of tablets stored on Colossus.
  • Rebalancing tablets from one node to another is very fast
  • Recovery from the failure of a node is very fast
  • When a Cloud Bigtable node fails, no data is lost.
