Deploy your site to Azure

Your first step will likely be to re-create your on-premises configuration in the cloud. This basic configuration will give you a sense of how networks are configured, and how network traffic moves in and out of Azure.

Your e-commerce site at a glance

Larger enterprise systems are often composed of multiple inter-connected applications and services that work together. You might have a front-end web system that displays inventory and allows customers to create an order. That might talk to a variety of web services to provide the inventory data, manage user profiles, process credit cards, and request fulfillment of processed orders.

There are several strategies and patterns employed by software architects and designers to make these complex systems easier to design, build, manage, and maintain. Let’s look at a few of them, starting with loosely coupled architectures.

Benefits of Loosely Coupled Architectures

Using an N-tier architecture

An architectural pattern that can be used to build loosely coupled systems is N-tier. An N-tier architecture divides an application into two or more logical tiers. Architecturally, a higher tier can access services from a lower tier, but a lower tier should never access a higher tier.

Tiers help separate concerns and are ideally designed to be reusable. Using a tiered architecture also simplifies maintenance. Tiers can be updated or replaced independently, and new tiers can be inserted if needed.

Three-tier refers to an n-tier application that has three tiers. Your e-commerce web application follows this three-tier architecture:

  • The web tier provides the web interface to your users through a browser.
  • The application tier runs business logic.
  • The data tier includes databases and other storage that hold product information and customer orders.

The following illustration shows the flow of a request from the user to the data tier.

When the user clicks the button to place the order, the request is sent to the web tier, along with the user’s address and payment information. The web tier passes this information to the application tier, which would validate payment information and check inventory. The application tier might then store the order in the data tier, to be picked up later for fulfillment.

Your e-commerce site running on Azure

Azure provides many different ways to host your web applications, from fully pre-configured environments that host your code, to virtual machines that you configure, customize, and manage. Let’s say you choose to run your e-commerce site on virtual machines. Here’s what that might look like in your test environment running on Azure. The following illustration shows a three-tier architecture running on virtual machines with security features enabled to restrict inbound requests.

What’s an Azure region?

A region is one or more Azure data centers within a specific geographic location. East US, West US, and North Europe are examples of regions. In this instance, you see that the application is running in the East US region.

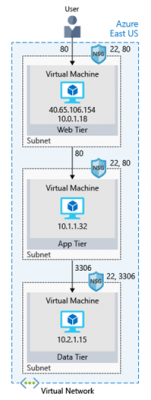

Two virtual machines running on a virtual network

What’s a virtual network?

A virtual network is a logically isolated network on Azure. Azure virtual networks will be familiar to you if you’ve set up networks on Hyper-V, VMware, or even on other public clouds. A virtual network allows Azure resources to securely communicate with each other, the internet, and on-premises networks. A virtual network is scoped to a single region; however, multiple virtual networks from different regions can be connected together using virtual network peering.

Virtual networks can be segmented into one or more subnets. Subnets help you organize and secure your resources in discrete sections. The web, application, and data tiers each have a single VM. All three VMs are in the same virtual network but are in separate subnets.

Users interact with the web tier directly, so that VM has a public IP address along with a private IP address. Users don’t interact with the application or data tiers, so these VMs each have a private IP address only.

You can also keep your service or data tiers in your on-premises network, placing your web tier into the cloud, but keeping tight control over other aspects of your application. A VPN gateway (or virtual network gateway), enables this scenario. It can provide a secure connection between an Azure Virtual Network and an on-premises location over the internet.

Azure manages the physical hardware for you. You configure virtual networks and gateways through software, which enables you to treat a virtual network just like your own network. You choose which networks your virtual network can reach, whether that’s the public internet or other networks in the private IP address space.

What’s a network security group?

A network security group, or NSG, allows or denies inbound network traffic to your Azure resources. Think of a network security group as a cloud-level firewall for your network.

For example, notice that the VM in the web tier allows inbound traffic on ports 22 (SSH) and 80 (HTTP). This VM’s network security group allows inbound traffic over these ports from all sources. You can configure a network security group to accept traffic only from known sources, such as IP addresses that you trust.

Note – Port 22 enables you to connect directly to Linux systems over SSH. Here we show port 22 open for learning purposes. In practice, you might configure VPN access to your virtual network to increase security.

Scale with Azure Load Balancer

You now have your site up and running on Azure. But how can you help ensure your site is running 24/7?

For instance, what happens when you need to do weekly maintenance? Your service will still be unavailable during your maintenance window. And because your site reaches users all over the world, there’s no good time to take down your systems for maintenance. You may also run into performance issues if too many users connect at the same time.

What are availability and high availability?

Availability refers to how long your service is up and running without interruption. High availability, or highly available, refers to a service that’s up and running for a long period of time.

You know how frustrating it is when you can’t access the information you need. Think of a social media or news site that you visit daily. Can you always access the site, or do you often see error messages like “503 Service Unavailable”?

You may have heard terms like “five nines availability.” Five nines availability means that the service is guaranteed to be running 99.999 percent of the time. Although it’s difficult to achieve 100 percent availability, many teams strive for at least five nines.

What is resiliency?

Resiliency refers to a system’s ability to stay operational during abnormal conditions.

These conditions include –

  • Natural disasters – System maintenance, both planned and unplanned, including software updates and security patches.
  • Spikes in traffic to your site – Threats made by malicious parties, such as distributed denial of service, or DDoS, attacks

Imagine your marketing team wants to have a flash sale to promote a new line of vitamin supplements. You might expect a huge spike in traffic during this time. This spike could overwhelm your processing system, causing it to slow down or halt, disappointing your users. You may have experienced this disappointment for yourself. Have you ever tried to access an online sale only to find the website wasn’t responding?

What is a load balancer?

A load balancer distributes traffic evenly among each system in a pool. A load balancer can help you achieve both high availability and resiliency.

Say you start by adding additional VMs, each configured identically, to each tier. The idea is to have additional systems ready, in case one goes down, or is serving too many users at the same time.

The problem here is that each VM would have its own IP address. Plus, you don’t have a way to distribute traffic in case one system goes down or is busy. How do you connect your VMs so that they appear to the user as one system?

The answer is to use a load balancer to distribute traffic. The load balancer becomes the entry point to the user. The user doesn’t know (or need to know) which system the load balancer chooses to receive the request.

The following illustration shows the role of a load balancer.

An illustration showing the web tier of a three-tier architecture. The web tier has multiple virtual machines to service user requests. There is a load balancer that distributes user requests among the virtual machines.

The load balancer receives the user’s request and directs the request to one of the VMs in the web tier. If a VM is unavailable or stops responding, the load balancer stops sending traffic to it. The load balancer then directs traffic to one of the responsive servers.

Load balancing enables you to run maintenance tasks without interrupting service. For example, you can stagger the maintenance window for each VM. During the maintenance window, the load balancer detects that the VM is unresponsive, and directs traffic to other VMs in the pool.

For your e-commerce site, the app and data tiers can also have a load balancer. It all depends on what your service requires.

What is Azure Load Balancer?

Azure Load Balancer is a load balancer service that Microsoft provides that helps take care of the maintenance for you. Load Balancer supports inbound and outbound scenarios, provides low latency and high throughput, and scales up to millions of flows for all Transmission Control Protocol (TCP) and User Datagram Protocol (UDP) applications. You can use Load Balancer with incoming internet traffic, internal traffic across Azure services, port forwarding for specific traffic, or outbound connectivity for VMs in your virtual network.

When you manually configure typical load balancer software on a virtual machine, there’s a downside: you now have an additional system that you need to maintain. If your load balancer goes down or needs routine maintenance, you’re back to your original problem.

If instead, however, you use Azure Load Balancer, there’s no infrastructure or software for you to maintain. You define the forwarding rules based on the source IP and port to a set of destination IP/ports.

The following illustration shows the role of Azure load balancers in a multi-tier architecture.

An illustration showing the web tier of a three-tier architecture. The web tier has multiple virtual machines to service user requests. There is a load balancer that distributes user requests among the virtual machines.

Azure Application Gateway

If all your traffic is HTTP, a potentially better option is to use Azure Application Gateway. Application Gateway is a load balancer designed for web applications. It uses Azure Load Balancer at the transport level (TCP) and applies sophisticated URL-based routing rules to support several advanced scenarios.

Conceptual image showing the Application Gateway product routing HTTP traffic between server groups based on the URL

This type of routing is known as application layer (OSI layer 7) load balancing since it understands the structure of the HTTP message.

Here are some of the benefits of using Azure Application Gateway over a simple load balancer:

Cookie affinity. Useful when you want to keep a user session on the same backend server.

SSL termination. Application Gateway can manage your SSL certificates and pass unencrypted traffic to the backend servers to avoid encryption/decryption overhead. It also supports full end-to-end encryption for applications that require that.

Web application firewall. Application gateway supports a sophisticated firewall (WAF) with detailed monitoring and logging to detect malicious attacks against your network infrastructure.

URL rule-based routes. Application Gateway allows you to route traffic based on URL patterns, source IP address and port to destination IP address and port. This is helpful when setting up a content delivery network.

Rewrite HTTP headers. You can add or remove information from the inbound and outbound HTTP headers of each request to enable important security scenarios, or scrub sensitive information such as server names.

What is a Content Delivery Network?

A content delivery network (CDN) is a distributed network of servers that can efficiently deliver web content to users. It is a way to get content to users in their local region to minimize latency. CDN can be hosted in Azure or any other location. You can cache content at strategically placed physical nodes across the world and provide better performance to end users. Typical usage scenarios include web applications containing multimedia content, a product launch event in a particular region, or any event where you expect a high-bandwidth requirement in a region.

What about DNS?

A pin on a map representing DNS

DNS, or Domain Name System, is a way to map user-friendly names to their IP addresses. You can think of DNS as the phonebook of the internet.

For example, your domain name,, might map to the IP address of the load balancer at the web tier,

You can bring your own DNS server or use Azure DNS, a hosting service for DNS domains that runs on Azure infrastructure.

The following illustration shows Azure DNS. When the user navigates to, Azure DNS routes traffic to the load balancer.

An illustration showing the Azure domain name system positioned in front of the load balancer.


With load balancing in place, your e-commerce site is now more highly available and resilient. When you perform maintenance or receive an uptick in traffic, your load balancer can distribute traffic to another available system.

Although you can configure your own load balancer on a VM, Azure Load Balancer reduces upkeep because there’s no infrastructure or software to maintain.

DNS maps user-friendly names to their IP addresses, much like how a phonebook maps names of people or businesses to phone numbers. You can bring your own DNS server, or use Azure DNS.
